Visualizer

Introduction​

The alerts page will provide a detailed analysis of the threats to your network. Here, we are going to talk about the Visualizer. It offers two main perspectives: a Summary view and an Extended view.

Usage​

Summary View​

The Summary view presents a synthesis of critical information that allows for quick identification of trends and essential points of network security:

  • Most Active IPs: Identify the IP addresses that generate the most alerts.
  • Common Attack Scenarios: Discover the most frequent types of attacks and the tactics used by attackers.
  • Target Security Engines: Specify the Security Engines that are the focus of the attacks.
  • Source AS: Determine the Autonomous Systems responsible for originating the network traffic.

Alerts Summary

Extended View​

The Extended view provides in-depth analysis through interactive visualizations. Each section displays the top ten in each category. Opening the bar chart will display all related info.

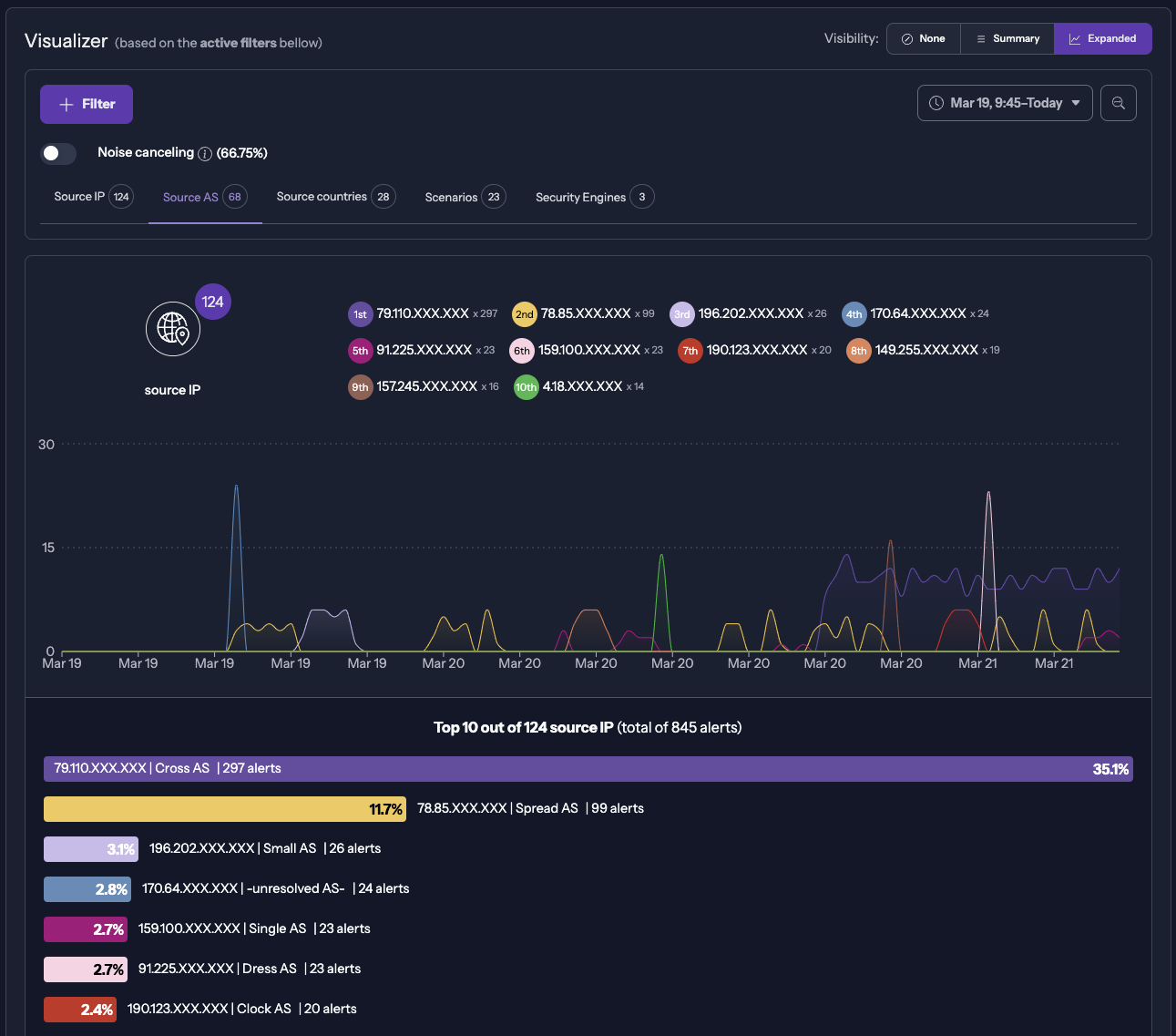

Alerts extended

Good to know​

Numerous items on the page have multiple actions available when clicking on them. For example, clicking on an IP can:

  • Open the CrowdSec CTI to get more information related to IP behavior on our network
  • Filter on all the alerts triggered by this IP alone.
  • Exclude this IP from the current page filters. Helpful when doing tests and your IP could be displayed.
  • Copy the following IP in your clipboard.

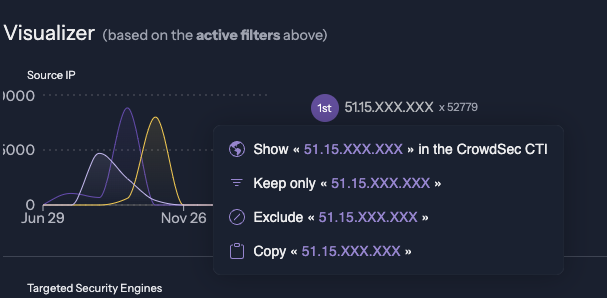

Alerts actions

Navigation through the view can be easily accomplished using the button above.

Alerts actions
